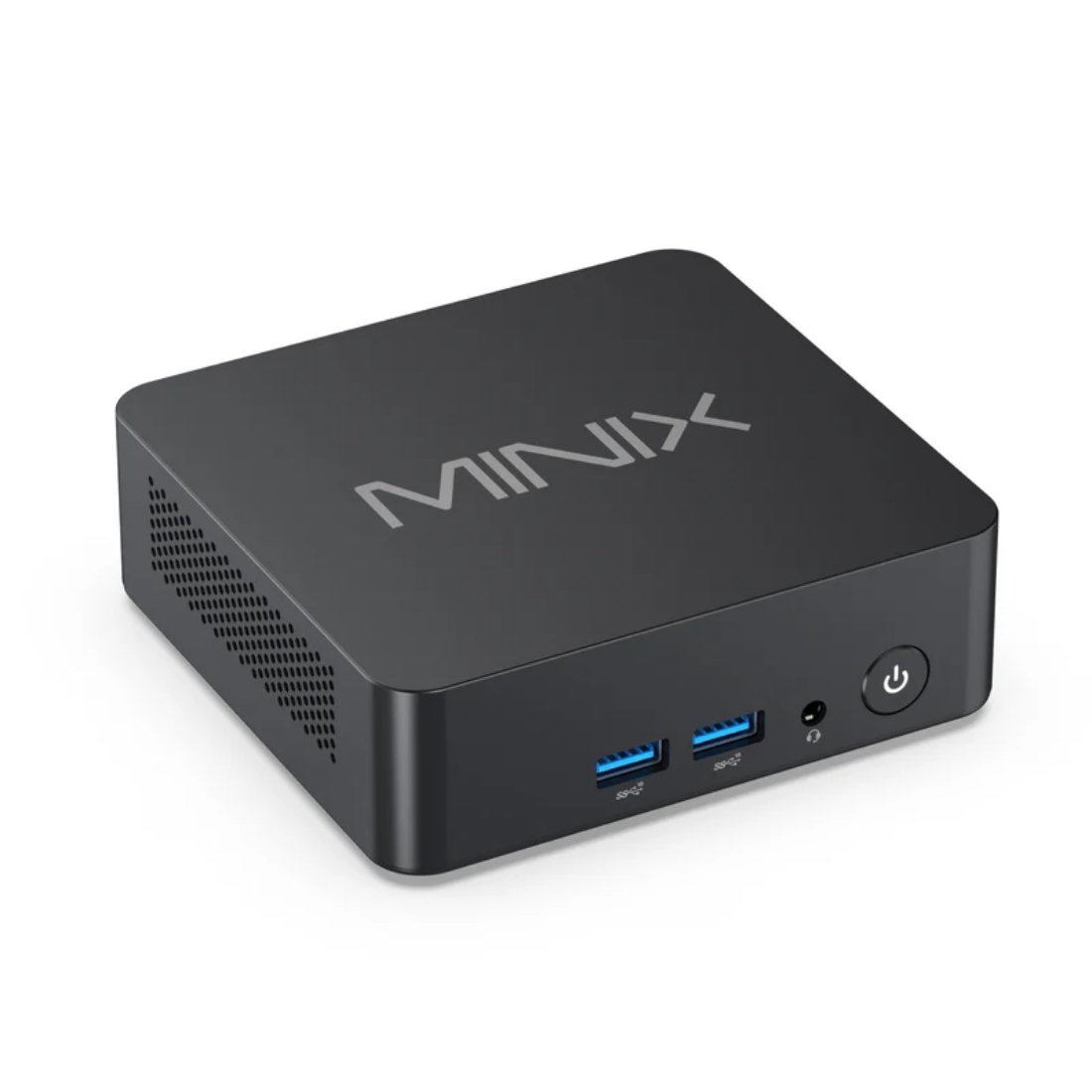

    Picture of NUC150 Picture of NUC150

    NUC150

    Be the first to review this product
    Call (888-765-9686 ) for pricing
    Supports Triple 4K Displays for Crisp Visuals
    RJ45 Ethernet Up to 2.5G for Optimal Speeds
    LPDDR5X Memory: 16GB, Up to 4800MHz
    M.2 2280/2242 PCle 3.0 SSD for Generous Storage
    Micro-Sized Design: Space-Saving & Pocket-Friendly
    Wi-Fi 6 Module for Ultra-Fast Wireless Connectivity
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product specifications
    Processor

    Intel® Twin Lake, MAX TDP. 15W Intel vPro N150

    Graphics

    Intel UHD Graphics

    Storage

    512GB M.2 2280 PCIe 3.0×4 SSD
    M.2 2280 PCIe 4.0×4 SSD Slot
    M.2 2242 KEY-M (SATA/NVME)

    Memory

    16GB DDR5-4800MHz
    1×DDR5 SO-DIMM (Up to 32GB, Not included)

    Wireless Connectivity

    WiFi 6 Interface: 1 x M.2 2230

    OS Support

    Windows 11 Pro 64-bit

    Video Output

    Support 3 display
    1 x HDMI TMDS 2.1 , 1 x TYPE-C

    Audio Output

     1 × Audio Output Combo Jack

    I/O Ports

    Front panel:
    1 x Power Button,
    1 x 3.5mm Combo Audio Jack,
    2 x USB-A 3.2 Gen2
    Rear panel:
    2 x HDMI (2K144Hz/4K60Hz),
    1 x RJ45 (1G/2.5G),
    1 x Type-C (DP, USB 3.2,PD OUT 15W),
    1 x USB-C 3.2 Gen2,
    1 x USB2.0 TypeA,
    1x Type-A (USB3.2 Gen2x1) A,
    1 x DC Jack

    LAN

     1×RJ-45 2.5G Ethernet

    Dimension

    Product Dimension: 117 x 111 x 36 mm

    Power

    1×Input AC 100~240V, Output 19V 5A 95W Max, DC 2.5/5.5mm (Support RTC, EU US UK Adapter)

    Compact Design

    The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.

    Powerful Processor Options

    Equipped with either an Intel® Processor N150 (4 Core, 6M Cache, 4 Threads, 3.60 GHz) or an Intel® Core™ 3 Processor N355 (8 Core, 6M Cache, 8 Threads, 3.90 GHz), the NUC150 guarantees smooth and efficient multitasking capabilities, suitable for various demanding applications.

    Ample Storage and Memory

    The NUC150 comes with 16GB of DDR5-4800MHz memory and a 512GB M.2 2280 PCIe 3.0×4 NVMe SSD, ensuring fast boot times and quick data access. Additionally, it offers expansion options via one M.2 2280 PCIe 3.0×2 NVMe SSD slot and one M.2 2242 PCIe 3.0x1 NVMe SSD slot (compatible with SATA 3.0 SSD), accommodating up to 4TB of additional storage.

    Versatile Connectivity Options

    The NUC150 features a comprehensive array of connectivity options, including two HDMI 2.1 TMDS ports supporting 4K@60Hz, multiple USB ports (including USB-C with DisplayPort 1.4 and power delivery capabilities), a 2.5G Ethernet port, and an M.2 2230 Intel® 802.11AX201 Dual Band Wi-Fi 6 card with BT5.2. These features cater to a wide range of peripheral and networking needs.

    Operating System Flexibility

    The NUC150 ships with Windows 11 Pro, offering a user-friendly and powerful operating system. It also supports multiple languages, making it accessible to users worldwide.

    Comprehensive Certification

    The NUC150 has obtained various certifications, including FCC, CE, UKCA, ROHS, WEEE, and PSE, ensuring compliance with global safety and environmental standards. Its Wi-Fi module, the AX201NGW, has also received numerous certifications from regulatory bodies around the world, guaranteeing reliable and secure wireless connectivity.

    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *

    Compact Design

    The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.The NUC150 Mini PC boasts a sleek and compact design, with machine dimensions of 117*111*36mm (excluding foot pads). This makes it an ideal choice for users seeking a powerful yet space-saving computing solution.

    Powerful Processor Options

    Equipped with either an Intel® Processor N150 (4 Core, 6M Cache, 4 Threads, 3.60 GHz) or an Intel® Core™ 3 Processor N355 (8 Core, 6M Cache, 8 Threads, 3.90 GHz), the NUC150 guarantees smooth and efficient multitasking capabilities, suitable for various demanding applications.

    Ample Storage and Memory

    The NUC150 comes with 16GB of DDR5-4800MHz memory and a 512GB M.2 2280 PCIe 3.0×4 NVMe SSD, ensuring fast boot times and quick data access. Additionally, it offers expansion options via one M.2 2280 PCIe 3.0×2 NVMe SSD slot and one M.2 2242 PCIe 3.0x1 NVMe SSD slot (compatible with SATA 3.0 SSD), accommodating up to 4TB of additional storage.

    Versatile Connectivity Options

    The NUC150 features a comprehensive array of connectivity options, including two HDMI 2.1 TMDS ports supporting 4K@60Hz, multiple USB ports (including USB-C with DisplayPort 1.4 and power delivery capabilities), a 2.5G Ethernet port, and an M.2 2230 Intel® 802.11AX201 Dual Band Wi-Fi 6 card with BT5.2. These features cater to a wide range of peripheral and networking needs.

    Operating System Flexibility

    The NUC150 ships with Windows 11 Pro, offering a user-friendly and powerful operating system. It also supports multiple languages, making it accessible to users worldwide.

    Comprehensive Certification

    The NUC150 has obtained various certifications, including FCC, CE, UKCA, ROHS, WEEE, and PSE, ensuring compliance with global safety and environmental standards. Its Wi-Fi module, the AX201NGW, has also received numerous certifications from regulatory bodies around the world, guaranteeing reliable and secure wireless connectivity.

    Product specifications
    Processor

    Intel® Twin Lake, MAX TDP. 15W Intel vPro N150

    Graphics

    Intel UHD Graphics

    Storage

    512GB M.2 2280 PCIe 3.0×4 SSD
    M.2 2280 PCIe 4.0×4 SSD Slot
    M.2 2242 KEY-M (SATA/NVME)

    Memory

    16GB DDR5-4800MHz
    1×DDR5 SO-DIMM (Up to 32GB, Not included)

    Wireless Connectivity

    WiFi 6 Interface: 1 x M.2 2230

    OS Support

    Windows 11 Pro 64-bit

    Video Output

    Support 3 display
    1 x HDMI TMDS 2.1 , 1 x TYPE-C

    Audio Output

     1 × Audio Output Combo Jack

    I/O Ports

    Front panel:
    1 x Power Button,
    1 x 3.5mm Combo Audio Jack,
    2 x USB-A 3.2 Gen2
    Rear panel:
    2 x HDMI (2K144Hz/4K60Hz),
    1 x RJ45 (1G/2.5G),
    1 x Type-C (DP, USB 3.2,PD OUT 15W),
    1 x USB-C 3.2 Gen2,
    1 x USB2.0 TypeA,
    1x Type-A (USB3.2 Gen2x1) A,
    1 x DC Jack

    LAN

     1×RJ-45 2.5G Ethernet

    Dimension

    Product Dimension: 117 x 111 x 36 mm

    Power

    1×Input AC 100~240V, Output 19V 5A 95W Max, DC 2.5/5.5mm (Support RTC, EU US UK Adapter)
